SHAREPOINT 2013 ENTERPRISE ON CLOUD

1-click AWS Deployment   1-click Azure Deployment 1-click Google Deployment

Overview

SharePoint 2013 is a collaboration environment that organizations of all sizes can use to increase the efficiency of business processes.

SharePoint 2013 sites provide secure environments that administrators can configure to provide personalized access to documents and other information.

SharePoint 2013 introduces new ways to work together in today’s cloud, social, mobile business environment. With SharePoint 2013, you can share, build, organize, manage, and discover better.

Applications can be developed for the SharePoint 2013 platform in different ways, for example, as:

  • Apps for SharePoint
  • SharePoint Publishing Sites
  • SharePoint Farm Solutions
  • Mobile Apps for SharePoint
  • Reusable Components for SharePoint

Adding these capabilities to your application (of any type mentioned alongside) helps users do things better and faster:

  • Workflows
  • Social & Collaboration Features
  • Location & Mapping Features
  • Search
  • Business Connectivity Services
  • Office 2013 & SharePoint 2013 Application Services

SharePoint Online is a collection of Web-based tools and technologies that help your organization store, share, and manage digital information. Built on Microsoft SharePoint Server 2013, this hosted service is ideal for working on projects, storing data and documents in a central location, and sharing information with others.

Cognosys Provides Hardened images of SharePoint on the cloud ( AWS marketplace, Azure and Google Cloud Platform).

Deploy SharePoint securely on cloud i.e. AWS marketplaceAzure and Google Cloud Platform (GCP)

SharePoint 2013 Enterprise on Cloud for AWS





Features

Major Features of Sharepoint 2013 Enterprise

  • Access Services: Build web databases and publish them to a SharePoint site. SharePoint visitors can use your database application in a web browser by using SharePoint permissions to determine who can see what. And you can start with a template so that you can start collaborating immediately.
  • App Deployment: Cloud-hosted apps for SharePoint include at least one remote component and may also include SharePoint-hosted components.
  • Custom Site Definitions : Not available to SharePoint Online customers. SharePoint Server 2013 customers can create their own site definitions that customize and extend standard SharePoint site templates.
  • SharePoint Design Manager : The Design Manager enables a step-by-step approach for creating design assets that you can use to brand sites. Upload design assets—images, HTML, CSS, and so on—and then create your master pages and page layouts.
  • App Management Services : The App Management Service database stores licensing information for all of the apps for SharePoint.
  • Browser-based customizations : You can customize your site without any special tools or coding expertise just by using the site settings. For example, you can change the look, title, and logo, change the navigation links, change the contents of a page, or change the appearance of views for lists and libraries.
  • Client Object Model (OM) : SharePoint 2013 has three client object models for managed code: .NET, Silverlight, and mobile. In addition, SharePoint includes a JavaScript client object model.
  • Custom Site Provisioning Page : Not available to SharePoint Online customers. SharePoint Server 2013 customers get a quick and easy way for users to make their site requests and to start using their sites quickly.
  • Developer Site : Use an Office 365 Developer Site as a development and testing environment to shorten your setup time and start creating, testing, and deploying your apps for SharePoint.
  • Forms Based Applications : A form view is basically a view that contains controls. A Forms Based Application lets the user create and use one or more forms within the application.
  • List and Library APIs : SharePoint provides APIs for accessing list and library data in the server object model, managed and JavaScript client object models, and the REST web service.
  • REST API : SharePoint 2013 provides an implementation of a Representational State Transfer (REST) web service that uses the OData protocol to perform CRUD operations on SharePoint list data. Use this when you must access SharePoint data from client technologies that do not use JavaScript and are not built on the .NET Framework or Microsoft Silverlight platforms.
  • Sandboxed Solutions : A sandboxed solution, compared to a farm solution, enables site collection administrators to install custom solutions in SharePoint Foundation 2013 without the involvement of a higher-level administrator.
  • SharePoint Design Manager : The Design Manager enables a step-by-step approach for creating design assets that you can use to brand sites. Upload design assets—images, HTML, CSS, and so on—and then create your master pages and page layouts.
  • Remote Event Receiver : To handle events in an app for SharePoint, developers can create remote event receivers and app event receivers. Remote event receivers handle events that occur to an item in the app, such as a list, a list item, or a web.
  • Access Services : Build web databases and publish them to a SharePoint site. SharePoint visitors can use your database application in a web browser by using SharePoint permissions to determine who can see what. And you can start with a template so that you can start collaborating immediately.

AWS

Installation Instructions for Windows

Step 1) RDP Connection: To connect to the deployed instance, Please follow Instructions to Connect to Windows  instance on AWS Cloud

Connect to virtual machine using following RDP credentials :

  • Hostname: PublicDNS  / IP of machine
  • Port : 3389

Username: To connect to the operating system, use RDP and the username is Administrator.
Password : Please Click here  to know how to  get password .

Step 2) Application Access Instructions:-

Note : Users need to reach out to us for CAL license providing number of CAL required.
If you face any issue in running this image or activating license, Please reach out to support@secureanycloud.com

  • Sharepoint Server has already been installed.
  • Sharepoint configuration should be completed by the user.
  • Please join a domain and have a SQL Server instance ready before starting the Sharepoint Configuration.

1. Default Login Credentials for SharePoint Access are same as your RDP Credentials,

  • User Name: Administrator
  • Password:  Retrieved from Console

Step 3) Other Information:

1.Default installation path: will be in your root folder “C:\Program Files\Common Files\microsoft shared\Web Server Extensions\15\BIN”
2.Default ports:

  • Windows Machines:  RDP Port – 3389
  • Http: 80
  • Https: 443

Configure custom inbound and outbound rules using this link



 Note: Click on the link to view detailed account permissions and security settings of  SharePoint 2013.

Installation Step by Step Screenshots

Step 1. Open SharePoint 2013  Application using desktop icon

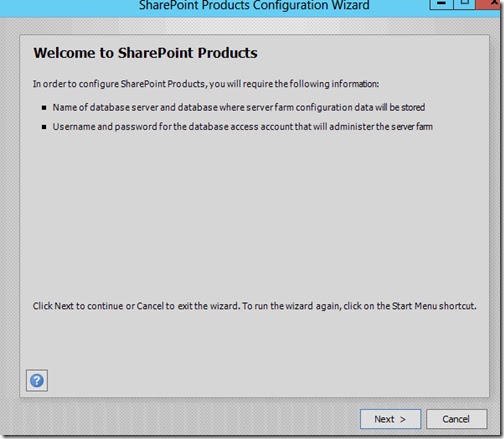

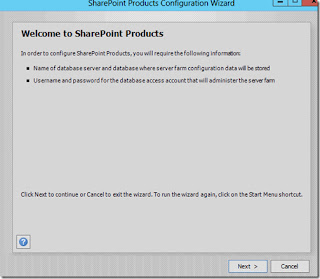

Step 2.Welcome Page sharepoint

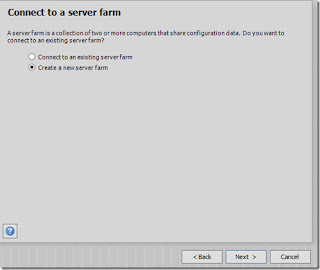

Step 3.Select Create a new server farm option from the next step as shown in below screen, if you are already have installed a new farm and doing a MinRole installation then select the first option to connect to an existing server farm.

Step 4.Enter the database server details and database access account details, use a separate user for this but I am using the same SPAdmin user for the preview installation. I have assigned it below rights in DB server:

  • Dbcreator
  • SecurityAdmin
  • SysAdmin

Step 5. If you are facing issues in connecting to SQL Server then make sure TCP/IP is enabled in SQL Server Configuration Manager. If you still getting the error then turn off the firewall on SQL server machine.

Step 6. After completing the database settings, press next which will take to you on Farm security settings page. Enter passphrase here which is required to secure the farm configuration data and is required for each server that joins the farm.

Step 7. Server Roles or the MinRoletopology

Here comes the MinRoles, SharePoint Server 2013 has six types of server roles:

  • Front-end
  • Application
  • Distributed Cache
  • Search
  • Custom
  • Single-Server Farm

You can either select single-server farm or can do a multi-server installation using MinRolestopology. If you have selected Single-Server Farm then you cannot extend to Multi-Server environment, so if you plan to extend to multi-Server farm in future then select the Custom MinRole or Application.

I am using single-server farm installation so will go with the last option.



Step 8.On next screen, you can specify port for Central Admin or can use the default which is selected randomly. I have never used the default port, I always an easy one which I can remember like 5555. Select NTLM installation mode at this phase and press next.

Step 9. Verify the settings in configuration wizard, press next to start the wizard. Advance option is not enabled for Single-Server installation.

Step 10. Press Next button, it will start the configuration of SharePoint farm. This is similar to what we do in past with MOSS 2007, SharePoint 2010 and SharePoint 2013 or even with SharePoint Foundation which is no more part of SharePoint 2016.

Step 11. The wizard can take some time and if you get some errors then you have to verify the roles of the user in SQL Server.

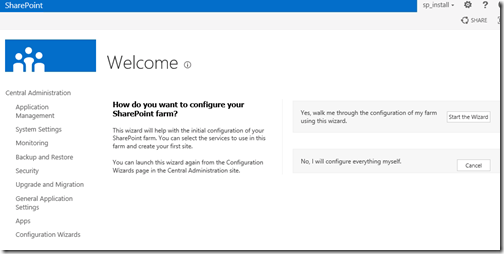

Step 12. After the installation, run the services wizard from Central Administration, setup will take you to the service configuration wizard page, you can either configure them through wizard and can also configure them manually.

Step 13.As this is test environment, so I will prefer configuring services using wizard. We can define a separate account for services but I am using the same SharePoint Admin account for all services.

Step 14.This will complete the services wizard for me and now I am ready to explore SharePoint.

sharepoint-server-2013-preview-look-like

Google

Installation Instructions for Windows

Step 1) VM Creation:

  1. Click the Launch on Compute Engine button to choose the hardware and network settings
  2. You can see at this page, an overview of Cognosys Image as well as some estimated costs of VM.

3.In the settings page, you can choose the number of CPUs and amount of RAM, the disk size, and type, etc.

Step 2) Application Access Instructions:-

Click the Windows “Start” button and select “All Programs” and search for Sharepoint

Step 3) Other Information:
1.Default ports:

  • Windows Machines:  RDP Port – 3389
  • Http: 80
  • Https: 443

Installation Step by Step Screenshots

Step 1. Join the Computer to Active Directory and with Domain login open SharePoint Product Configuration



Step 2.Welcome Page SharePoint



Step 3.Select Create a new server farm option from the next step as shown in below screen if you are already have installed a new farm and doing a MinRole installation then select the first option to connect to an existing server farm.



Step 4.Enter the database server details and database access account details, use a separate user for this but I am using the same SPAdmin user for the preview installation. I have assigned it below rights in DB server:

  • Dbcreator
  • SecurityAdmin
  • SysAdmin





Step 5.If you are facing issues in connecting to SQL Server then make sure TCP/IP is enabled in SQL Server Configuration Manager. If you still getting the error then turn off the firewall on SQL server machine.





Step 6. After completing the database settings, press next which will take to you on Farm security settings page. Enter passphrase here which is required to secure the farm configuration data and is required for each server that joins the farm.

Step 7. Server Roles or the MinRoletopology

Here comes the MinRoles, SharePoint Server 2016 has six types of server roles:

  • Front-end
  • Application
  • Distributed Cache
  • Search
  • Custom
  • Single-Server Farm

You can either select single-server farm or can do a multi-server installation using MinRolestopology. If you have selected Single-Server Farm then you cannot extend to Multi-Server environment, so if you plan to extend to multi-Server farm in future then select the Custom MinRole or Application.

I am using single-server farm installation so will go with the last option.







Step 8.On next screen, you can specify the port for Central Admin or can use the default which is selected randomly. I have never used the default port, I always use an easy one which I can remember like 5555. Select NTLM installation mode at this phase and press next.





Step 9. Verify the settings in configuration wizard, press next to start the wizard. The advance option is not enabled for Single-Server installation.



Step 10. Press Next button, it will start the configuration of SharePoint farm. This is similar to what we do in past with MOSS 2007, SharePoint 2010 and SharePoint 2013 or even with SharePoint Foundation which is no more part of SharePoint 2016.





Step 11. The wizard can take some time and if you get some errors then you have to verify the roles of the user

Step 12. After the installation, run the services wizard from Central Administration, setup will take you to the service configuration wizard page, you can either configure them through the wizard or you can also configure them manually.

Step 13.As this is test environment, so I will prefer configuring services using the wizard. We can define a separate account for services but I am using the same SharePoint Admin account for all services.

Step 14.This will complete the services wizard for me and now I am ready to explore SharePoint.
