NCache is a 100% Native .NET Open Source distributed cache (released under Apache License, Version 2.0). NCache provides an extremely fast and linearly scalable distributed cache that caches application data and reduces expensive database trips. Use NCache to remove performance bottlenecks related to your data storage and databases and scale your .NET and Java applications to extreme transaction processing (XTP).

NCache ships with a rich set of features, such as fixed-time and idle-time expiration of cached data, Least-Recently-Used (LRU), Least-Frequently-Used (LFU), priority-based eviction policies, and intelligent relationship management through file- and key-based dependencies. A main advantage of this product is that it ships with a common API for both local and clustered environments, which will certainly help you reduce the learning curve if you want to explore this product in detail.

The NCache API is the core part of the product, while NCache Service and NCache Manager Application provide the facility to create clusters and caches. These utilities are automatically installed at the time of setup. The API provides all the functionality to incorporate various user needs associated with caching.

You must follow certain steps to get started with the product. First, create a new ASP.NET project and add reference to Alachisoft.NCache.Web. You need to import the Alachisoft.NCache.Web.Caching namespace into your application and inherit Alachisoft.NCache.Web.UI.NPage instead of System.Web.UI.Page. The next step is to initialize the cache in your Web application, as shown here:

You are now ready to use the cache in your application, and you can easily add, remove, and fetch the items from the cache. The product comes with a sample tutorial application that will explain the above scenario in detail. The product also ships with a utility called Keep Alive, which will automatically send an http request to the specified URL after the specific time interval. It also ensures that your application never times out by keeping the sessions active.

The product ships with sample applications, such as Chat and Guess Game, which you can explore from the Start menu. Unfortunately, I found that the vendor didn t implement validation rules for the sample applications. The application returned a run-time error when I tried to execute Guess Game without entering any data in the textbox. I hope the vendor will fix these issues during the next release of the product. I am pleased to report, however, that AlachiSoft provided excellent support for all the issues within one day of reporting the problems.

The product comes with complete source code and Visual Studio project files for all the sample applications. The product also ships with detailed documentation in HTML format, which you can also locate from the Start menu. The documentation provides comprehensive coverage about hardware and software requirements for working with the product, information about clusters, incorporating cache into your ASP.NET applications, and much more. It also provides help for the sample applications that ship with the product. I would like to see AlachiSoft integrate the documentation with Visual Studio.NET so that developers can easily access the help system while developing applications.

NCache provides the necessary background for performing all the required tasks for the purpose of caching and it is up to you to effectively make use of it in your .NET applications.

NCache comes in two editions, Local and Clustered. The Local edition only supports local caches; the Clustered edition provides support for replicated and partitioned caches. A trial version of the product can be downloaded from the AlachiSoft Web site. It will be fully active for two full months; after that you can purchase the product directly from the vendor. The pricing of NCache is a little high, but you ll find real use of this product if you are developing large and critical .NET applications.

NCache has been the market leader in .NET Distributed Caching for the last 10 years. It is a very popular and mature product with hundreds of high end customers all over the world relying on it for their application scalability needs.

NCache Session Properties

Exclusive Session Locking: NCache Session Management enhances ASP.NET Core Sessions by providing exclusive session locking to avoid deadlock and data integrity being compromised. Locking is configurable and by default is off.

Locking Release Retry: If an exclusive lock is used, locking retries are also configured. In case of concurrent requests, lock release is tried a configured number of times.

Location Affinity: NCache’s Session Management Services provide Location Affinity which manages ASP.NET Core Sessions across multiple web farms which are geographically separated. For Location Affinity, one ‘primary’ and one or more ‘secondary’ caches have to be specified for each web farm. The primary cache will be used for all local traffic, in local region and secondary cache(s) are of distant geographical regions. These are configured in Web.config.

Cluster Topologies: For sessions, different clustering topologies offered by NCache can be used. Replicated topology offers load balancing of client so that the ASP.NET Core application does not suffer during intensive traffic. If partitioned-replicated cache is used, it provides higher scalability and reliability to the application and performs faster transactions.

Reliability: By default, a session is stored in-memory of an ASP.NET process. If the process recycles or an application server goes down, session data is lost. With NCache, session data is stored outside the ASP.NET process, in a cache cluster. Any cache topology can be opted to meet the needs of reliability. So in case of application server unavailability, session data remains available when the ASP.NET process recycles back or application server becomes live again.

Scalability: NCache Session uses in-memory cache as storage, where a clustered cache provides even better scalability. Working in a clustered environment allows adding more servers to session cluster at runtime; this results in more scalability and reliability for the application. Hence ASP.NET session clustering for web farms is faster and more scalable than storing them in a database.

Availability, Load Balancing, Fault Tolerance: In a web farm environment, using NCache with ASP.NET Core Sessions provides better fault tolerance, keeping session data available at all server nodes in a clustered cache. This also results handling larger load because sessions can be distributed to multiple servers in the farm.

Session Lookup in Cache Made Easy: All session data in cache can be retrieved in a single call through HttpContext.Session in ASP.NET Core.

Better Performance: Session data being stored in in-memory cache, closer to the ASP.NET application, yields maximum performance.

Although ASP.Net Core lacks a cache object, it provides support for several different types of caching including in-memory caching, distributed caching, and response caching. An open-source product provided by Alachisoft, NCache is an extremely fast, in-memory, distributed, scalable caching framework for use in .Net applications.

NCache is 100-percent native .Net. It is not only faster than Redis, but also provides several distributed caching features that are not supported by Redis. You can learn more about the differences between NCache and Redis here. This article will discuss how we can work with NCache in ASP.Net Core applications.

A distributed cache such as NCache can improve both the performance and scalability of applications. In a distributed cache, the cached data doesn’t reside in the memory of an individual web server. You can add or remove a server without impacting the cache or the cached data. And if any of the servers go down or stop responding, other servers will still be able to retrieve the cached data. This explains why the cached data in a distributed cache can survive server restarts.

Windows Installation

NCache can also be installed via an interactive Windows installer by following these steps:

Search for Command Prompt on Windows Start menu. Right click on the search result “Command Prompt”, and select Run as Administrator. The reason for this is that NCache must be installed from an “admin” user.
Install NCache: Run “msiexec.exe” utility from Command Prompt to install NCache in an interactive mode as following. Please note that the .msi file may have a different name for .NET Core installation.
```
msiexec.exe /I "C:\NCacheSetupPath\ncache.ent.x64.msi"
```
The following Welcome to the NCache Installation Wizard screen appears:
Click Next.
The next screen asks you to accept the license agreement.
By clicking I accept the terms in the License Agreement, you are making a legal commitment to abide by the Alachisoft Software Agreement for NCache. You cannot proceed without accepting the license agreement.
Click Next.

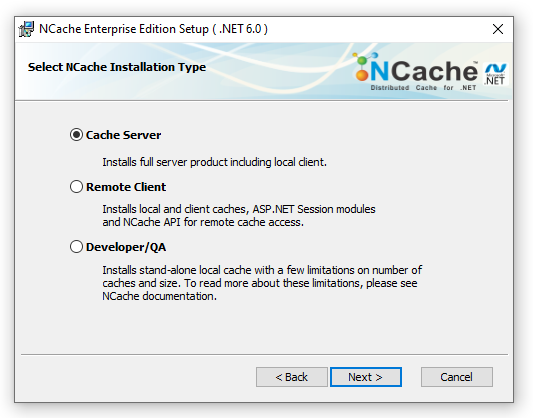

The Select NCache Installation Type appears. Note that Developer edition is only provided for .NET.

Select the installation option that you want (Cache Server for now) and click Next.
- Cache Server installs the full server product along with the local client.
- Remote Client installs remote client libraries including ASP.NET session modules. It also installs an OutProc local cache and client cache.
- Developer installs standalone local cache and development libraries, along with restricted access to remote caches. Note the following limitations for Developer Installation Type while connecting to remote caches:
  - Throttling of 100 requests/sec for each client: All such clients that are licensed under DEV license will not be able to make more than 100 requests/sec to the remote cache.
  - Limited number of requests (200,000) a client can send to remote cache: In a lifetime of client application in case it is licensed under DEV license, the client will stop making requests to remote cache after it has sent 200,000 requests to remote cache. Once the client has made 200,000 requests, a licensing exception will be thrown saying “Clients running under DEV license cannot send more than 200,000 requests to remote cache.”

Click Next.

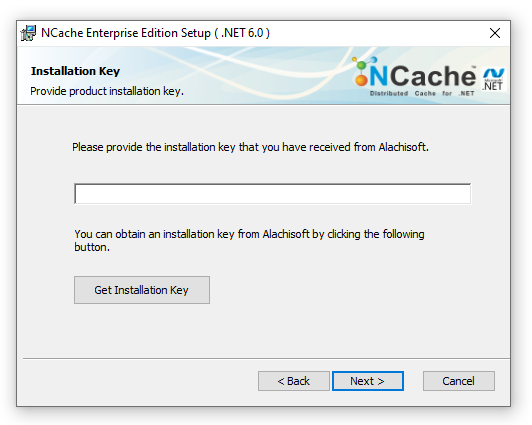

Evaluation Information dialog appears which asks for the installation key. (For Cache Server Only)
This is the key which you have received from Alachisoft when you registered to download NCache Enterprise Edition.

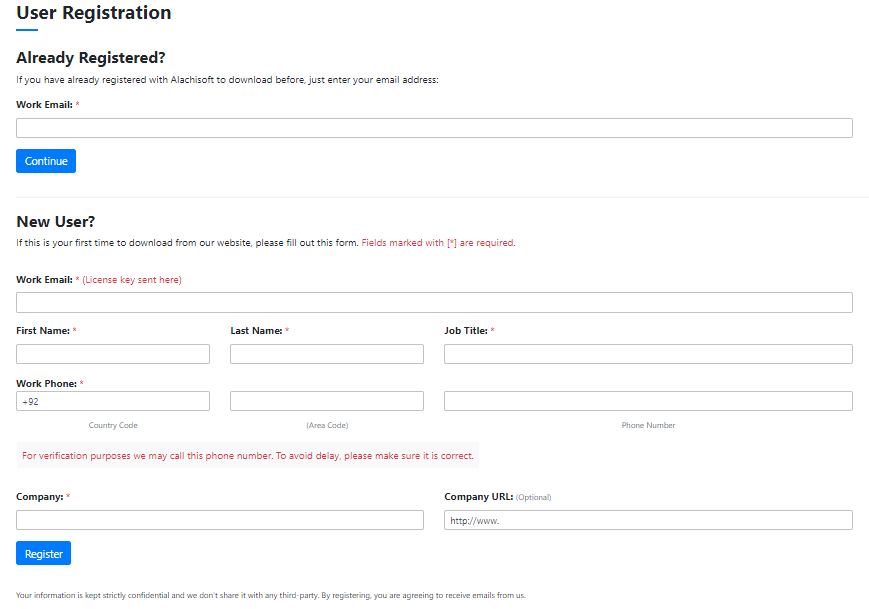

If you do not have the Install Key, then click Get Evaluation Key. Registration page from Alachisoft website is displayed. Enter all the required information and press Register or Login and an Install Key is emailed to you. Then, enter that Install Key in the above dialog.
User Information dialog appears which asks for your information. Enter all required information and then press Next.

NOTE

Make sure that the email address provided is the one used during registration with Alachisoft.

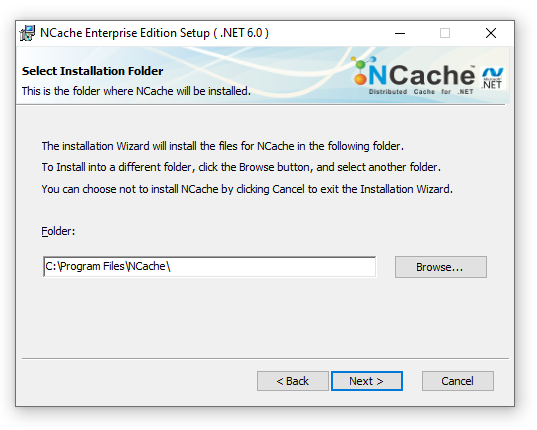

The next dialog confirms the location where NCache should be installed. Keep the defaults or change if you must. Click Next.
The next dialog presents all the features and allows you to unselect any feature. We recommend that you keep all the features and press Next
.
And, then press Install on the next dialog.
After the installation is completed successfully, the following dialog is displayed. If you don’t see this dialog then it means the installation did not complete successfully
.
Click Finish to exit the installation setup.
You can refer to Getting Started to get to get you started with setting up NCache environment.

Install/Uninstall NCache Enterprise for Linux

Install NCache (Server/Client)

NCache Enterprise .NET Core provides a tar.gz file (for Linux) for installation through terminal.

NOTE

.NET Core 3.0 is a pre-requisite for installing NCache .NET Core.

Download the NCache tar.gz file and place it on your desired location.
In the terminal, extract the tar.gz file through the following command:

tar -zxf <Path to tar.gz file>

NOTE

After extraction, the installation scripts are placed in the folder named ncache-enterprise-5.0-dotnet.

In the terminal, go to the directory where NCache installation script is placed.

cd ncache-enterprise-5.0-dotnet

NOTE

The sudo command grants you the Admin rights and privileges to run NCache scripts.

For detailed installation usage, run the following command in Linux terminal:

sudo ./install -h

Install NCache Server Mode

For NCache’s server mode installation, run the following command. Notice that -m 0 indicates “Cache Server” installation.

NOTE

Make sure that the email address provided is the one used during registration with Alachisoft.

sudo ./install -f John -l Smith -e johnsmith@alachisoft.com -c Alachisoft -k XXXXXXXXXXXXXXXXX -m 0

Install NCache Client Mode

Installing NCache Client involves the same steps as for the Server mode. To differentiate, simply write -m 3 instead of -m 0.

NOTE

Make sure that the email address provided is the one used during registration with Alachisoft.

sudo ./install -f John -l Smith -e johnsmith@alachisoft.com -c Alachisoft -m 3

WARNING

If you miss any of these fields, an installation error will occur.

This will initiate NCache installation and once it is completed, a message will be displayed saying Installation completed successfully.

NOTE

NCache is installed in the /opt/ncache folder by default.
Once NCache is installed, the NCache service will start running automatically.

Uninstall NCache (Server/Client)

For uninstallation, go to the ncache-enterprise-5.0-dotnet directory where all the necessary scripts are placed.

cd ncache-enterprise-5.0-dotnet

In the terminal, execute the following command:

sudo ./uninstall

You will be asked with a Yes/No question to confirm uninstallation. Simply reply with y.

.NET Core Installation Properties

The following properties are supported by NCache installation by tar.gz:

Switch/Properties	Purpose	Default Value
`-k` (Required)	The key you are provided with upon downloading NCache.	–
`-m` (Required)	Specifies the installation type. Possible values are: `0` (Cache Server) `3` (Cache Client)	0 (Cache Server)
`-f` (Required)	Your first name	–
`-l` (Required)	Your last name	–
`-c` (Required)	Your company name	–
`-e` (Required)	Your email address which is used during registration with Alachisoft.	–

NCache Open Source on cloud for AWS

Cache Performance	NCache is an extremely fast distributed cache. It is much faster than going to the database to read data. It provides sub-millisecond response times to its clients.
Cache Scalability	Unlike databases, NCache is able to scale out seamlessly and allow you to keep growing your transaction load. On top of this, NCache provides you linear scalability, which means that as you increase your cache servers, your transaction capacity also increases from the original capacity.
Bulk Operations	Bulk Get, Add, Insert, and Remove. This covers most of major cache operations and gives great performance boost.
Asynchronous Operations	An asynchronous operation returns control to the application and performs the cache operation in the background. Very useful in many cases and improves application performance greatly.
Compression	You can specify this in the config. file and change it at runtime and then do a “Hot Apply”.
Compact Serialization	NCache generates serialization code and compiles it in-memory when your application connects to the cache. This code is used to serialize objects and it is almost 10 times faster than regular .NET serialization (especially for larger objects). NCache also stores type-IDs instead of long string-based type names in the serialized object so it is much smaller (hence compact). Following enhancements have been made to compact-serialization: Users can select and de-select the data members to be compact serialized. Byte arrays are no more serialized. Compact types are hot-appliable.
Indexes	NCache creates indexes inside the cache to speed up various data retrieval cache operations. You can use this with groups, tags, named tags, searching, and more. Expiration and eviction policies also use indexes.
Multiple Network Interface Cards	You can assign two network interface cards to a cache server. One can be used for clients to talk to the cache server and second for multiple cache servers in the cluster to talk to each other. Improves your data bandwidth scalability greatly.

Recovery from Split-Brain	Split-Brain is a situation where due to temporary network failures between cluster nodes result in multiple sub clusters. Each sub cluster, in this case, has its own coordinator node and does not know about the other sub clusters. This can eventually result in inconsistent data. With NCache 4.9, users can enable the cache clusters to automatically recover from Split-Brain scenarios.
Cache Client Keep Alive	Some firewalls break idle network connections, causing problems in cache client-to-cache server communication in NCache. The Cache Client Keep Alive feature, if enabled on a client node, automatically sends a lightweight packet to the cache servers at a configurable interval (a sort of heart-beat). These packets are sent only in case of “no activity” between clients and servers and therefore do not interfere with regular client/server traffic.
Dynamic Cache Cluster	NCache is highly dynamic and lets you add or remove cache servers at runtime without any interruption to the cache or your application.
Peer to peer architecture	This means there is no “master” or “slave” nodes in the cluster. There is a “primary coordinator” node that is the senior most node. And, if it goes down, the next senior most node automatically becomes the primary coordinator.
Connection Failover	Full support. When a cache server goes down, the NCache clients automatically continue working with other servers in the cluster and no interruption is caused.
Dynamic Configuration	A lot of information can be changed at runtime without stopping the cache or your applications. NCache has a “Hot Apply” feature does this.
Unlimited Cache Clusters	NCache allows you can create unlimited number of cache clusters. The only limiting factor is the underlying hardware (RAM, CPU, NICs etc.)

Local Cache	You can use NCache as InProc or OutProc local cache. InProc is much faster but your memory consumption is higher if you have multiple application processes. OutProc is slightly slower but saves you memory consumption because there is only one cache copy per server.
Client Cache (Near Cache)	Client Cache is simply a local InProc/OutProc cache on client machine but one that stays connected and synchronized with the distributed cache cluster. This way, the application really benefits from this “closeness” without compromising on data integrity.
Mirrored Cache	Mirrored Cache is a 2-node active-passive cache and data mirroring is done asynchronously.
Replicated Cache	Replicated Cache is active-active cache where the entire cache is copied to each cache server. Reads are super fast and writes are done as atomic operations within the cache cluster.
Partitioned Cache	You can create a dynamic Partitioned Cache. All partitions are created and clients are made aware all at runtime. This allows you to add or remove cache servers without any interruption.
Partitioned-Replica Cache	Same as Partitioned Cache and is fully dynamic except there is also a “replica” for each partition kept at another cache server for reliability.

One Active – One Passive	Bridge Topology Active-Passive You can create a Bridge between the active and passive sites. The active site submits all updates to the Bridge which then replicates them to the passive site.
Both Active	Bridge Topology Active-Active You can create a Bridge between two active sites. Both submit their updates to the Bridge which handles conflicts on last update wins rule or a custom conflict resolution handler provided by you. Then, the Bridge ensures that both sites have the same update.
Switch between Active/Active and Active/Passive	While adding caches to bridge, you can configure a cache to participate as an active or a passive member of bridge. Even when bridge is up and running, you can turn a passive into active and an active into passive without losing any data. User experience to configure a bridge is also changed as the topologies in bridge can be switched between Active-Active to Active-Passive at any time.
Connect/Disconnect Caches	Cache administrators can temporarily connect and disconnect caches from the bridge while bridge is running. When a cache is disconnected, no data is transferred between bridge and the disconnected cache. Similarly, the cache on the other side of the bridge stops queuing data to the bridge as the disconnected cache is no more receiving any data. Cache can be reconnected at any time.

Thin NCache Manager Project Files	The GUI-based NCache management tool (called NCache Manager) used to retain cache configuration information inside its project file. This caused data integrity issues if multiple cache configuration modifications were input on different machines. To avoid this, NCache Manager no longer stores any cache configuration information inside its project files. Instead, all configuration information is kept on common cache servers, accessed from any location.
Total Cache Management Through PowerShell	NCache has a rich set of command line tools (along with powerful GUI-based management tools). With NCache 4.8 and later, all NCache command-line cache management tools are implemented in PowerShell, allowing for very sophisticated cache management.
Visual Studio Integration	NCache allows yoyu to perform basic management and configuration operations within the Visual Studio. With NCache 4.4 SP2 and later, the Developer installation comes with an ‘NCache Manager’ extension which helps developers manage NCache from Visual Studio. Visual Studio 2010/2012/2013/2015/2017 are supported by NCache.
Cache Admin GUI Tool	NCache Manager is a powerful GUI tool for NCache. It gives you an explorer view and lets you quickly administer the cache including cache creation/editing and many other functions.
Cache Monitoring GUI Tool	It lets you monitor NCache cluster wide activity from a single location. It also lets you monitor all of NCache clients from a single location. And, you can incorporate non-NCache PerfMon counters in it for real-time comparison with NCache stats.
PerfMon Counters	NCache provides a rich set of PerfMon counters that can be seen from NCache Manager, NCache Monitor, or any third party tool that supports PerfMon monitoring.
Graceful Node Stop	A node can now be gracefully stopped in a cluster. This action will make sure that all client requests that have reached the node are executed on cache before it comes to complete stop. Similarly, all write behind operations pending in the queue at that time are also executed on the data source. However, no more client requests are accepted by this node.
ReportView Control	There is another type of dashboard available in NCache Monitor now that allows you to create a report view style dashboard. In this dashboard, we have two report controls. One is for cache server nodes, while other one for client nodes. Users can drop the counters in this control and their values are shown in a report view style as shown in PerfMon.
Logging of Counters	Counters added in report view can also be configured to be logged. Users can start and stop logging at any time. They can also schedule the logging to start automatically by specifying the start and stop time. These log files are generated in .csv format.
Command Line Admin Tools	NCache provides a rich set of command line tools/utilities. You can create a cache, add remote clients to it, add server nodes to it, start/stop the cache, and much more.
